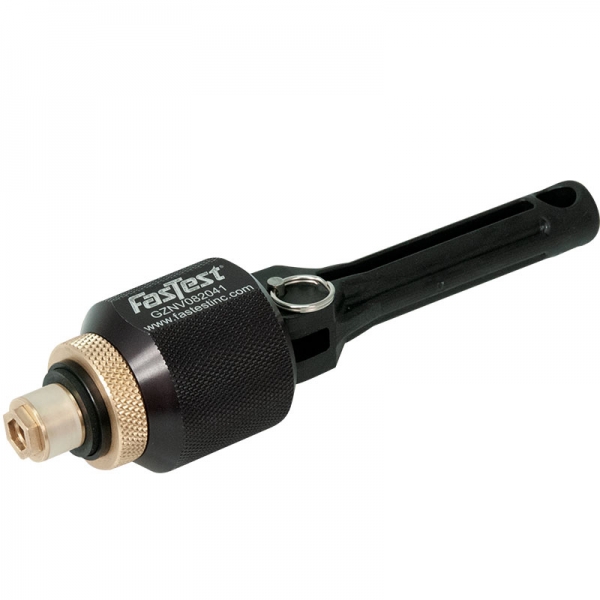

Internally valved manual sealing connection tool for Natural Gas or Propane Burner Testing.

For Gas Burner Testing

Valved Connector, Short Insertion Depth

Reduced Length Shaft

Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure

Specifications

Brands

 N/A FasTest GasMate® GTek Automation

Dimension A

 N/A 7.30 in185.4 mm

Dimension B

 N/A 1.88 in47.8 mm

Dimension C

 N/A 4.96 in119.1 mm

Dimension D

 N/A 1.06 in26.9 mm

Minimum Insertion (Dimension M)

 N/A 0.63 in16.0 mm

Connection Size

 N/A 3/8 in

Connects To

 N/A Female National Pipe Thread (FNPT)/British Standard Pipe Parallel (BSPP) British Standard Pipe Taper (BSPT)

Pressure Rating

 N/A 5 psi

Operating Temperature

 N/A 0 to +200 ºF-17 to 93 ºC

Material of Construction

 N/A Anodized Aluminum Brass Molded Nylon Handle

Note for Seal Material

 N/A Additional seal material types available.

Note

 N/A Fast

Actuation Method

Lever Handle

 N/A Two way actuation handle is simple and ergonomic for production applications

Seal Material

Main Seal Material1 N/A Urethane
Internal Seal Material2 N/A Buna-N

Features

Features

 N/A Fast Reliable Safe

Additional Information

Additional Information

 N/A
  1. Lockable collar to keep sealing pressure consistent and internally valved to prevent gas flow once disconnected
  2. Adjustable ring to accommodate the widest sealing range in the industry
  3. Internal shut-off valve to stop the flow of gas when handle is in the disconnected position
  4. Non-sparking aluminum and brass components
  • 1 Additional seal material types available, consult factory.
  • 2 Additional seal material types available, consult factory.
