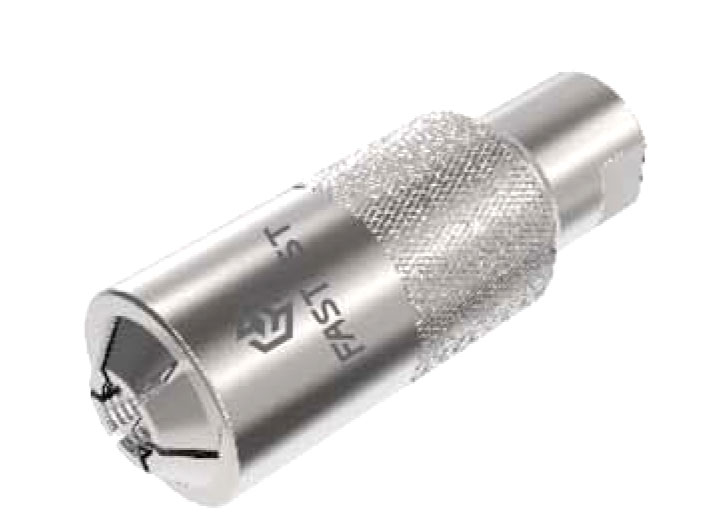

70 Series for Non Standard/Custom Formed Tube Ends

Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Connects To

 N/A Barbed Beaded Expanded Flared Form End

Sealing Range

 N/A 0.236 to 0.315 in0.315 to 0.433 in0.433 to 0.591 in0.591 to 0.787 in0.787 to 0.984 in0.984 to 1.181 in1.181 to 1.417 in1.417 to 1.693 in1.693 to 1.850 in1.850 to 2.047 inUp to 8.0 mm8.0 to 11.0 mm11.0 to 15.0 mm15.0 to 20.0 mm25.0 to 30.0 mm36.0 to 42,0 mm20,0 to 25.0 mm30,0 to 36,0 mm42,0 to 47.0 mm47,0 to 52.0 mm

Thread Size

 N/A 1/8 in1/4 in3/8 in1/2 in3/4 in1 in1-1/4 in

Body Size

 N/A Body Size 1 Body Size 2 Body Size 3 Body Size 4 Body Size 5 Body Size 6 Body Size 7 Body Size 8 Body Size 9 Body Size 10

Pressure Rating

 N/A 750 psi51 bar

Operating Temperature

 N/A -40 to +121 ºC-40 to +250 ºF

Material of Construction

 N/A Anodized Aluminum Stainless Steel

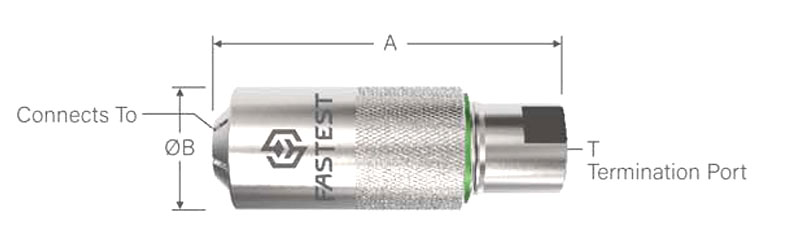

Dimensions

Dimension A

 N/A 2.91 in3.15 in3.54 in3.92 in4.28 in74.0 mm80.0 mm90.0 mm100.0 mm109.0 mm

Dimension B

 N/A 0.87 in0.99 in1.19 in1.38 in1.58 in1.78 in1.97 in2.17 in2.36 in2.75 in22.0 mm25.0 mm30.0 mm35.0 mm40.0 mm45.0 mm50.0 mm55.0 mm60.0 mm70.0 mm

Termination Port Size (T)

 N/A 1/8 in1/4 in3/8 in1/2 in3/4 in1 in1-1/4 in

Termination Port Type (T)

 N/A British Standard Parallel Pipe (BSPP(G)) Female National Pipe Thread (FNPT)

Seal Material

Seal Material

 N/A Buna-N

Note for Seal Material

 N/A Additional seal material types available.

Actuation Method

Manual Sleeve

 N/A Easy, ergonomic sleeve action eliminates repetitive twisting and turning - push to connect, pull to release

How to Order

How to Order

 N/A The 70 Series connectors are designed, engineered and manufactured to your specific application requirements.
For part number and a price quotation:
  1. Identify the gripping and sealing areas of your test piece.
  2. Contact FasTest with information on test pressure, media and provide detailed drawing, including tolerances of test piece.
  3. Two sample parts will be required at the time of order for final design .and testing purposes.

Features

Features

 N/A Fast Reliable Safe

Additional Information

Additional Information

 N/A
  1. SurConnect™ - Green to go visible indicator to ensure complete connection and internally valved to prevent gas flow once disconnected

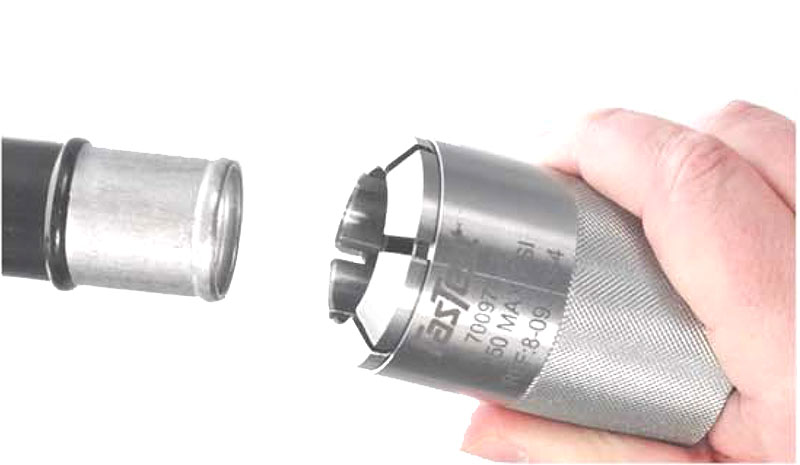

  2. Instant external formed tube connection with floating piston to ensure proper OD / face / ID sealing position
  3. Collet design locks securely over formed tube feature
  4. Connect and seal to expanded, flared, beaded, barbed and formed end tubing - custom built per application
  5. Internal shut-off valve option stops flow upon disconnection

Note

Note

 N/A
  • Also available with an internal shut-off valve
  • Connectors are designed and manufactured per application. Because of the specific engineering and production involved, two copies of prints disclosing all dimensional tolerances and features, two sample parts, and application information on pressure and media being used must accompany all first-time orders.
  • Specific connector part number will be established by FasTest Engineering.
  • FasTest reserves the right to decline a request based on feasibility of design.
Body sold separately, select seal set for the base connector.
