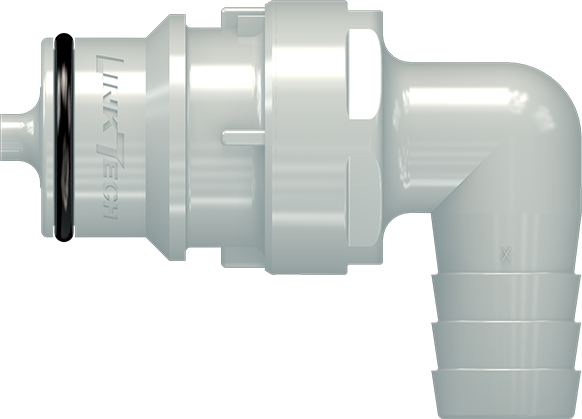

These New 60PP Series couplings bring the highest available 3/8" flow with both valved and non-valved configurations. They are manufactured from medical grade, gamma sterilizable polypropylene. The cost efficient high flow couplings offer a larger, more robust thumb-latch and greater chemical resistance. The New and Improved Panel Mount couplings offer a stronger, more reliable design for thicker wall panels and other various applications. All 60PP couplings interconnect with all other 60 Series couplings as well as other similar industry thumb-latch type high flow couplings.
Typical Lead time is 1-2 weeks, but varies based on demand.
Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure
Specifications
|
Dimensions
|
Performance Ratings
|
Materials and Construction
|
Panel Mount Dimensions
|
Box Size
Specifications
Brands |
N/A GTek Automation |
Type |
N/A Valved |
Inside Diameter (ID) Tube Size |
N/A 1/2 in12.7 mm |
Weight per Each |
N/A 1.00 lb |
Additional Information |
N/A Each coupling combination was tested at 70 ºF (21 ºC). |
Performance Ratings
Operating Pressure |
N/A Vacuum to 60 psiVacuum to 4.2 bar |
Operating Temperature |
N/A 0 to 71 ºC32 to 160 ºF |
Flow Capacity |
N/A 3/8 in |
Materials and Construction
Bodies and Terminations Material |
N/A Medical Grade Polypropylene |
Internal Valve Material |
N/A Medical Grade Polypropylene |
Internal Valve Springs Material |
N/A 316 Stainless Steel |
External Springs and Pins Material |
N/A Stainless Steel |
O-Rings Material |
N/A Peroxide-Cured Ethylene Propylene Diene Monomer (EPDM) (Others Available) |
Thumb-Latch Material |
N/A Medical Grade Polypropylene |
