These New 60PP Series couplings bring the highest available 3/8" flow with both valved and non-valved configurations. They are manufactured from medical grade, gamma sterilizable polypropylene. The cost efficient high flow couplings offer a larger, more robust thumb-latch and greater chemical resistance. The New and Improved Panel Mount couplings offer a stronger, more reliable design for thicker wall panels and other various applications. All 60PP couplings interconnect with all other 60 Series couplings as well as other similar industry thumb-latch type high flow couplings.

Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure

Specifications

Brands

N/A GTek Automation

Type

N/A Non-Valved

Inside Diameter (ID) Tube Size

N/A 1/2 in12.7 mm

Weight per Each

N/A 1.00 lb

Additional Information

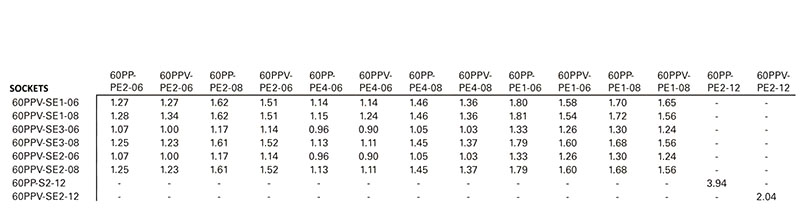

N/A Each coupling combination was tested at 70 ºF (21 ºC).

Dimensions

Length

N/A 2.88 in

Width

N/A 1.36 in

Height

N/A 1.44 in

Performance Ratings

Operating Pressure

N/A Vacuum to 60 psiVacuum to 4.2 bar

Operating Temperature

N/A 0 to 71 ºC32 to 160 ºF

Flow Capacity

N/A 3/8 in

Materials and Construction

Bodies and Terminations Material

N/A Medical Grade Polypropylene

Internal Valve Material

N/A Medical Grade Polypropylene

Internal Valve Springs Material

N/A 316 Stainless Steel

External Springs and Pins Material

N/A Stainless Steel

O-Rings Material

N/A Peroxide-Cured Ethylene Propylene Diene Monomer (EPDM) (Others Available)

Thumb-Latch Material

N/A Medical Grade Polypropylene

Panel Mount Dimensions

Maximum Panel Thickness

N/A 0.3 in

Minimum Panel Thickness

N/A 0.03 in

Panel Nut Hex Size

N/A 1.375 in

Box Size

Box Length

N/A 7 in

Box Width

N/A 6 in

Box Height

N/A 5 in
