Specifications

Brands

 N/A GTek Automation

Direct Current (DC) Rated Voltage

 N/A 12 V

Attainable Vacuum

 N/A -60 kPa-450 mmHg-600 mbar-17.7 inHg

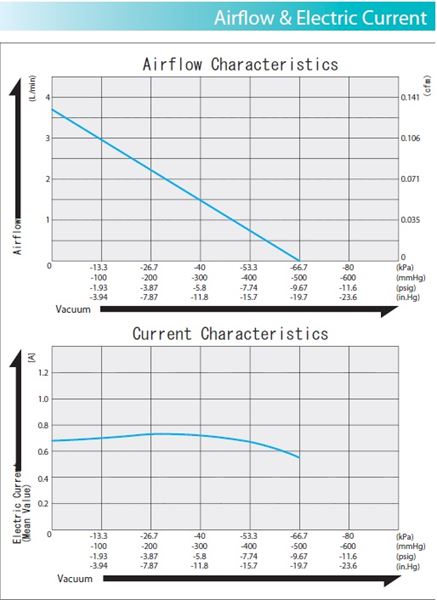

Free Air Displacement1 N/A 3 L/min0.106 ft³/min

Duty Cycle

 N/A Continuous

Life Expectancy

 N/A 10,000 h

Coil Insulation Class

 N/A A or its equivalent

Gross Weight

 N/A 2.01 lb0.91 kg

Leadwire Length

 N/A 11-13/16 in300 mm

Hose Barb Inlet Outside Diameter (OD)

 N/A 6 mm

Hose Barb Outlet Outside Diameter (OD)

 N/A 6 mm

Current (Mean Value)

 N/A 0.73 A

Box Size

Box Length

 N/A 12 in

Box Width

 N/A 9 in

Box Height

 N/A 9 in

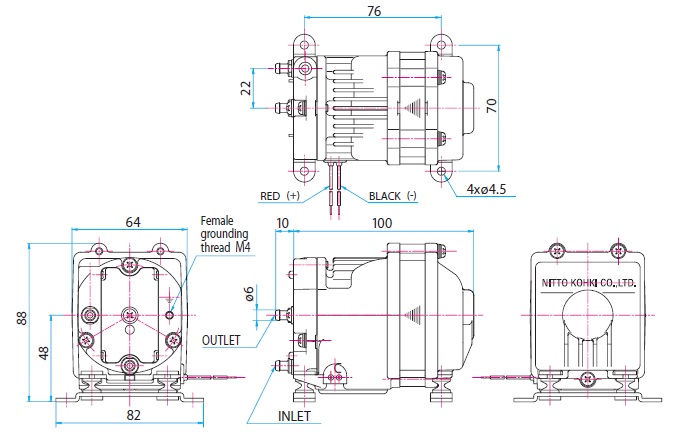

Dimensions

Length

 N/A 3.00 in76 mm

Width

 N/A 2-3/4 in70 mm

General Conditions

Ambient Temperature

 N/A 0 to 40 ºC

Ambient Humidity

 N/A 30 to 85 %

Fluid

 N/A Air

Applications

Applications

 N/A Analyzers Medical Equipment Etc.

Note

Note

 N/A Heavy-duty rubber feet available on request. To prevent drop damage when located within portable devices.

Please read the page of "How to Use This Catalog" first for correct use of compressors and pumps.
  • 1 Air displacement at no-load operation.
