Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure

Specifications

Brands

 N/A GTek Automation

Pressure Rating

 N/A 10 kPa0.1 kgf/cm²0.1 bar1.45 psig

Rated Airflow

 N/A 10 L/min0.35 ft³/min

Power Consumption

 N/A 11 W

Rated Frequency

 N/A 50 Hz60 Hz

Life Expectancy Mean Time to Failure (MTTF)

 N/A 10,000 h

Hose Nipple Outlet Outside Diameter (OD)

 N/A 7.5 mm

Duty Cycle

 N/A Continuous

Coil Insulation Class

 N/A B for 230V & A for 120V or its equivalent

Leadwire Length

 N/A 7-7/8 in200 mm

Technical Data

Alternating Current (AC) Rated Voltage

 N/A 230 V

Maximum Pressure

 N/A 20 kPa0.2 kg/cm²0.2 bar0 to 2.9 psig

Weight per Each

 N/A 1.8 lb0.82 kg

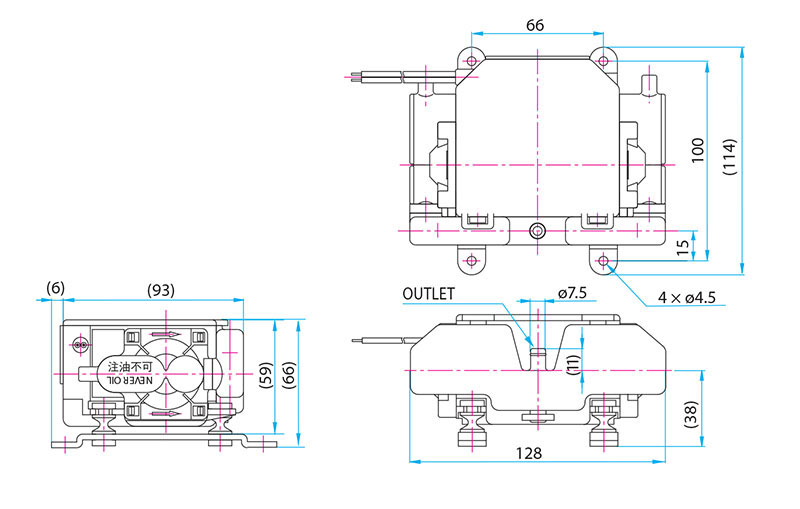

Dimensions

Length

 N/A 2-19/32 in66 mm

Width

 N/A 3-15/16 in100 mm

Box Size

Box Length

 N/A 12 in

Box Width

 N/A 9 in

Box Height

 N/A 9 in

Note

Note

 N/A Please read the page of “How to Use This Catalog” first for correct use of compressors and pumps.
