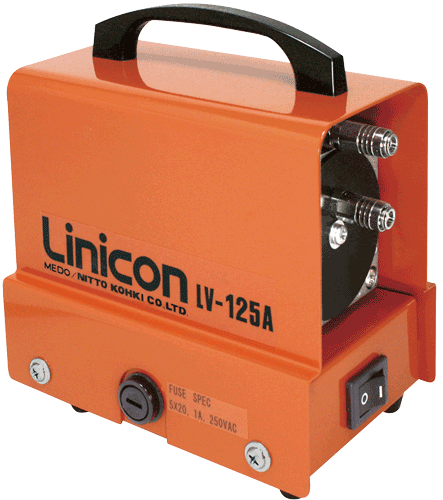

- AC linear free piston vacuum pump
- Equipped with fuse and removable power cable
- Compact and lightweight
- Low noise level
- Oil-less construction
Unit of Measure
Specifications
|
Technical Data
|
Dimensions
|
Box Size
|
High Adsorption Power
|
Vacuum Pick-Up Set
Specifications
Brands |
N/A GTek Automation |
Maximum Vacuum Pressure |
N/A -33.3 kPa-250 mmHg-333 mbar-9.84 inHg |
Free Air Displacement |
N/A 6 L/min |
Power Consumption |
N/A 14 W |
Rated Frequency |
N/A 60 Hz |
Duty Cycle |
N/A Continuous |
Coil Insulation Class |
N/A B or its equivalent |
Weight per Each |
N/A 3.3 lb1.5 kg |
High Adsorption Power
High Adsorption Power |
N/A
If the following options are prepared together with model LV-125A, the vacuum pick-up set can be arranged.
|
Pad Diameter |
N/A 4 mm6 mm |
Suction Power When the Adsorption Face is Placed Horizontally and Moved Upward (A) at 4 Millimeter (mm) Pad Diameter |
N/A 20 g |
Suction Power When the Adsorption Face is Placed Horizontally and Moved Upward (A) at 6 Millimeter (mm) Pad Diameter |
N/A 50 g |
Suction Power When the Adsorption Face is Placed Horizontally and Moved Upward (B) at 4 Millimeter (mm) Pad Diameter |
N/A 10 g |
Suction Power When the Adsorption Face is Placed Horizontally and Moved Upward (B) at 6 Millimeter (mm) Pad Diameter |
N/A 25 g |
Vacuum Pick-Up Set
Vacuum Pick-Up Set |
N/A
If the following options are prepared together with model LV-125A, the vacuum pick-up set can be arranged.
|
