Pneumatic external sealing of medical devices in automated and semi-automated processes.

Medical Series Connectors

Typical Lead time is 1-2 weeks, but varies based on demand.
Unit of Measure

Specifications

Brands

 N/A FasTest GTek Automation

Connects To

 N/A Catheters Luers

Pressure Rating

 N/A Vacuum to 34 barVacuum to 500 psi

Pilot Pressure

 N/A 60 to 90 psi4.1 to 6.2 bar

Operating Temperature

 N/A 0 to +200 ºF-17 to 93 ºC

Operating Temperature for ICON™

 N/A 32 to 100 ºF0 to 38 ºC

Material

 N/A Anodized Aluminum

Note for Seal Material

 N/A Additional seal material types available.

Pneumatic

 N/A Pilot pressure applied to seals with no metal contact and uniform seal movement seals inside luer

ICON™ Technology

 N/A Seal Life™ Sure Seal™

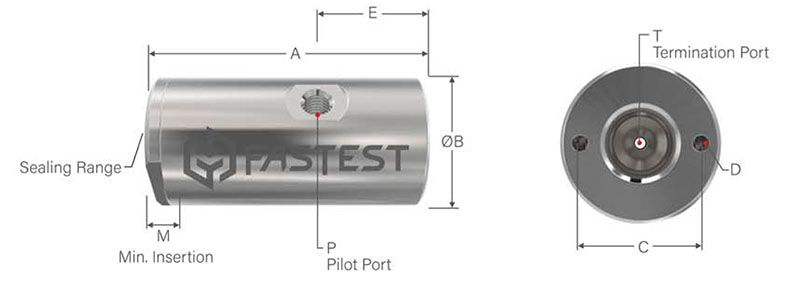

Dimensions

Dimension A

 N/A 1.72 in43.7 mm

Dimension B

 N/A 0.84 in21.3 mm

Dimension C

 N/A 0.63 in16.0 mm

Thread Size (Dimension D)

 N/A 4-40

Thread Type (Dimension D)

 N/A Unified Coarse (UNC)

Dimension E

 N/A 0.72 in18.3 mm

Minimum Insertion (Dimension M)

 N/A 0.16 in4.1 mm

Pilot Port Thread Size (P)

 N/A 10-32

Pilot Port Thread Type (P)

 N/A Unified Fine (UNF)

Outside Diameter (OD) Sealing Range

 N/A 0.080 to 0.130 in2.00 to 3.30 mm

Termination Port Size (T)

 N/A 1/8 in

Termination Port Type (T)

 N/A Female National Pipe Thread (FNPT)

Seal Material

Seal Material

 N/A Food and Drug Administration (FDA) Approved Fluoroelastomer (FKM)

ICON™ Intelligent Connection Technology

ICON™ Intelligent Connection Technology

 N/A FasTest's ICON™ adds sensing capabilities to our mechanical Sealing Connection Tools. ICON™ Tools include instant LED visual feedback and data output to improve sealing connection accuracy, maximize production efficiency, and optimize maintenance.

ICON™ Features

Sure Seal™

 N/A Instant LED feedback verifies a good connection prior to starting a test.

Seal Life™

 N/A Alert when the main seal is at end of life and must be replaced.

Programming Tool Features

Programming Tool Features

 N/A
  • Quickly setup ICON™ Tools
  • Eliminate the need for PLC programming
  • Can be powered from wall adapter (included) or from a PLC (24VDC)

Features

Features

 N/A Fast Safe

Additional Information

Additional Information

 N/A
  1. Connector and test part should be rigidly fixtured to prevent separation when under pressure
  2. Ideally designed for automated processes and high volume production testing
  3. Seals against standard luers, catheter, tubes and other cylindrical components
  4. Cleaned and lubricated for oxygen safe environment with FDA approved seals
  5. Quick and easy seal replacement to minimize down time, maintenance and tool inventory
Pilot pressure required

All parts are washed in an aqueous solution utilizing ultrasonic agitation at a temperature of 140ºF. Components are then rinsed in a cascading rinse tank and dried using 99.999% pure nitrogen and assembled in a 100,000 ppm level controlled environment.

Kryptox is the standard lubricant.

White FDA Neoprene seal material is compliant to 21CFR177.2600. Optional material is a FDA listed fluorocarbon.

Note

Note

 N/A Additional seal material types available.

Body sold separately, select seal set for the base connector.
